LZIR30-150-640-17-GD

IR zoom lenses are mostly used in relatively wide outdoor scenes with the aim to increase focal length for getting long-range detection. Since the focal length can be changed during operation, the key part of the scene can be zoomed in and observed, thus providing a better monitoring system. With the continuous development and improvement of the security industry and outdoor infrastructure, zoom lenses are being utilized in many industries and fields such as highways, railways and bridges, coastal and border surveillance, and many other scenarios.

Electrical interface

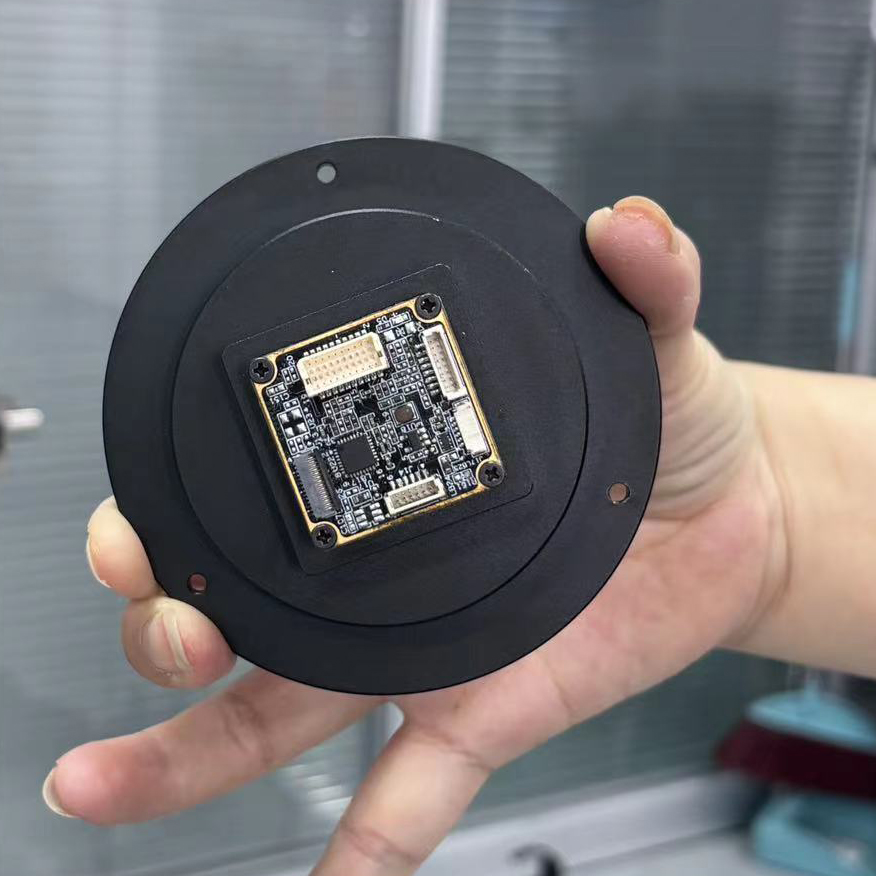

The external electrical interface of the infrared movement mainly includes power supply and communication and LVDS video interface, BT656 digital video output interface, etc.

Power and Communication Interface

Infrared movement power and communication interface socket types：SH1_0_6P Double Row Vertical Socket。Communication serial port can be used for infrared movement configuration management, support movement polarity, brightness, contrast and other parameters adjustment.

LVDS Video Output Interface

Infrared movement Cameralink video output interface socket type：DF20F-20DP-1V(56)Double Row Vertical Socket，Recommended Plug Type：DF20A-20DS-1C Double Row Plug.

LVDS parameter

LVDS output timin

BT656 Video Output

(Optional, customisation support)

Infrared Movement BT656 Digital Video Output Connector Socket Type：FH35C-27S-0.3SHW， Recommended 0.3mm spacing/27PIN/FPC Flex cable acces.

Annex I:UART Communications Protocol

Infrared movement includes communication serial port, can be used for Infrared movement configuration management, support movement polarity, brightness, contrast and other parameters adjustment. If there is no special instructions when ordering, infrared movement delivery default RS232 communication serial port form, if you need RS485, RS422 serial port form, please inform in advance when ordering
